HYPERUP 8A prenosivi zvučnik sa DSP-om, Bluetooth-om i TWS-om
HYPERUP 8A prenosivi zvučnik sa DSP-om, Bluetooth-om i True Wireless Stereo sistemom.
U radnji - ✓
There are so many small sound reinforcement applications where is not required a huge sound pressure like a rock concert, but where frequency response and sound definition are crucial. However, the available space is often limited. Additionally, correct loudspeaker positioning is often overlooked, which can negatively impact the final result. The Soundsation HyperUp 8A is a solution to these challenges.

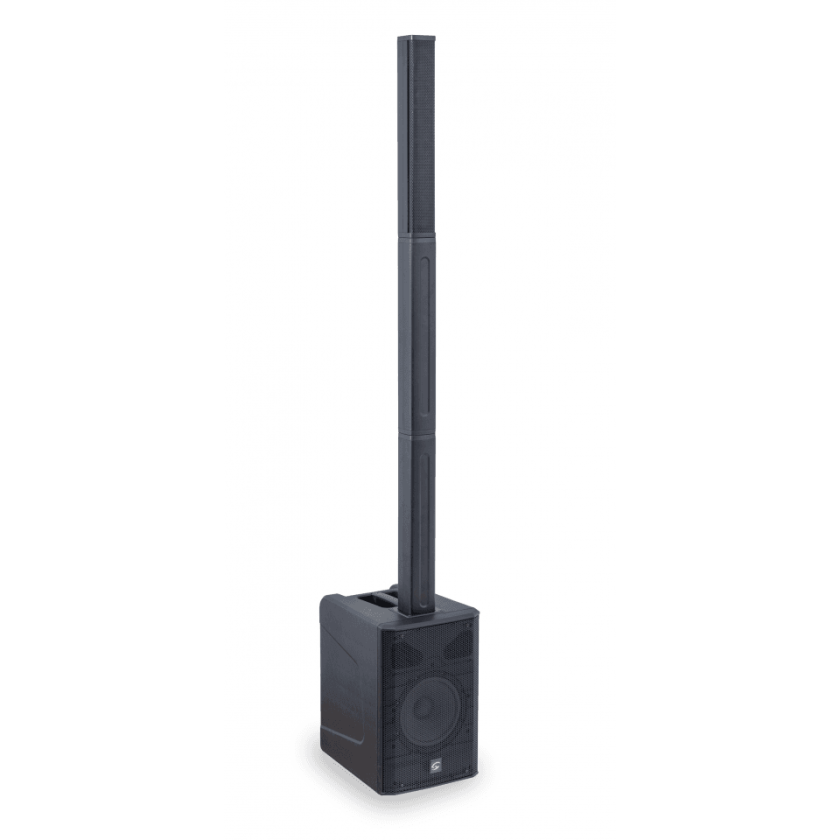

This is a portable sound system that weighs just under 12kg. It features an 8-inch high-excursion subwoofer and a vertical array of four 2.75-inch full-range speakers. The speakers are driven by 600W peak class-D power amplifiers and digital processing, which allows for total control of transducers, multi-band limiter, protections, and frequency response. The system also includes a 3-channel mixer with USB, SD-Card, and Bluetooth connectivity. The DSP is user-friendly and offers four presets to accommodate different needs: Flat, Music, Band, and Speech.
The system has an HF coverage of 120° (H) x 20° (V). Its column structure is divided into three segments, with a maximum height of approximately 1.85m including the subwoofer. This design allows for flexible placement of the mid-high transducers, depending on whether the system is on the floor, on a stage, or at a height where the passive segments are not required.
The subwoofer is internally connected to the column, resulting in an elegant and minimalist aesthetic. The only visible cables are the power and audio connection at the back. Additionally, using Bluetooth to connect to your audio source further reduces the need for cables.
In the case of a dual HyperUp 8A stereo system, the TWS (True Wireless Stereo) connection can be invisible. This system enables wireless connection between two HyperUp speakers, allowing the 'master' (the one to which the Bluetooth audio sources is connected) to connect to the 'slave' so that the latter only plays the right channel. This creates a stereo system without the need for audio connections between the two. The system includes a padded bag for transporting the three column segments safely. An optional subwoofer cover (HyperUp 8 Sub Cover, part number SOU0114) is also available.
Product details
Key features
- 4x 2.5" Wideband Speakers
- 120° H x 20° V Coverage
- 1x 8" Woofer with 2" Voice Coil
- 600W Peak Power, Class-D Power Amp
- 2x Mic-Line Inputs with Combo Connector
- 1x Stereo Line Input with RCA & Mini-Jack
- DSP with 4 Presets
- Bluetooth with TWS Function (True Wireless Stereo)
- Less Key features
Specifications
-
Speaker Type8” Portable Column PA System with Mobile App
-
Frequency response50Hz-20kHz
-
Input Sensitivity0dBu (selectable)
-
Sensitivity (1W/1m)95 dB
-
Max. SPL121 dB
-
Amp. Max. (Program/Peak)200W/600W - 2 x Class-D
-
Protection SystemDSP based multiband limiter, Short-Circuit, Over Current, Overheating
-
LF8" - 4 ohm
-
Vertical Array System4x 2.5" Wideband Speakers
-
Directivity (HxV)120° x 20°
-
Crossover250Hz - 24dB/oct.
-
Connections2x Mic/Line Combo (XLR/Jack 6.35mm), Stereo Mini Jack, RCA Jack, USB-SD-Bluetooth, XLR Mix Out,
-
Controls2x Mic/Line level, Aux In Level (Aux/BT/USB/SD level), Media Player Buttons, Master level, DSP Preset, Front LED
-
LED IndicatorsLimit, DSP Preset
-
Media playerUSB, SD-Card, Bluetooth, LCD Display, Remote Control
-
Media player controlsMode, Previous track, Next track, Loop, Play/Pause
-
App ControlAuxiliary BT connection to Go-Sound Air App for Android®/iOS®
-
Mains Power100-240Vac - 50/60Hz
-
FuseT1.60AL/250V
-
Mains ConnectorVDE with Fuse
-
Housing / Grille materialSub - PP / Column - PP / Grille - Steel
-
Handles1 Handle on top
-
AccessoriesColumn Padded Bag (Included), Subwoofer Cover (Optional)
-
Column Dimension (WxHxD)77 x 515 x 74 mm
-
Subwoofer Dimension (WxHxD)293 x 455 x 380 mm
-
Packing Dimension (WxHxD)545 x 570 x 355 mm
-
Column Net Weight1,7 kg (segment with speakers), 0,85 kg (segment without speakers)
-
Subwoofer Net Weight8,6 kg
-
System Net Weight11.8 kg
-
Gross Weight13,8 kg
