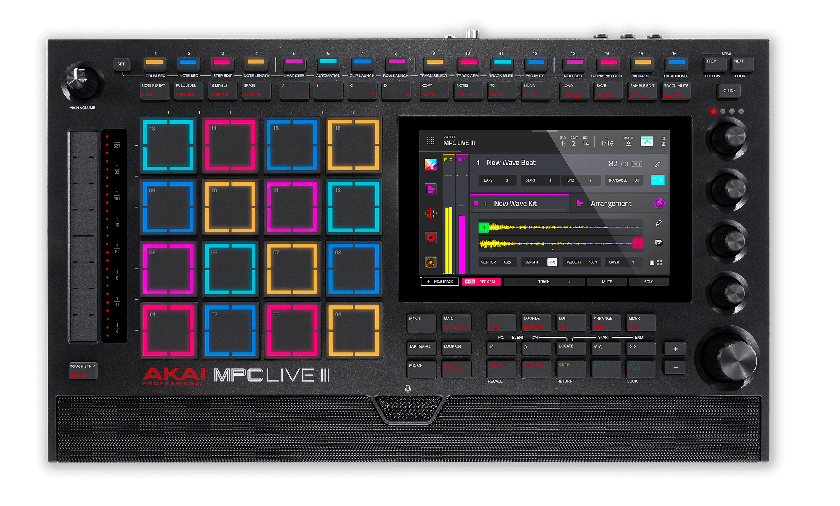

Akai MPC Live III

MPC Live III for producers who move fast. It’s packed with dynamic production tools, responsive controls, sounds designed by the industry’s top sample makers, and the fastest processor of any MPC to date.

193.900,00 RSD

Povremeno na lageru, proverite dostupnost

Detalji

Digital Audio System

ADCs
24-bit @ 44.1, 48, or 96 kHz

DACs
24-bit @ 44.1, 48, or 96 kHz

Digital Signal Processing
32-bit floating point
Mic Inputs 1–2

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response
20 Hz – 20 kHz (+0.2 / -1.2 dB)

Dynamic Range
110.0 dB (A-weighted)

SNR
101.8 dB (1 kHz, +4 dBu, A-weighted)

THD+N
0.002% (1 kHz, +4 dBu, -1 dBFS)

Preamp EIN
-131 dBu (max gain, 40 Ω source, A-weighted)
-127 dBu (max gain, 150 Ω source, unweighted)

Maximum Input Level
+13 dBu (XLR-Pad ON), -1 dBu (XLR-Pad OFF)

Sensitivity
-46 dBu (XLR-Pad ON), -60 dBu (XLR-Pad OFF)

Gain Range
59 dB
Line Inputs 1–2

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response
20 Hz – 20 kHz (+0.2 / -1.1 dB)

Dynamic Range
110.6 dB (A-weighted)

SNR
98.6 dB (1 kHz, +4 dBu, A-weighted)

THD+N
0.002% (1 kHz, +3 dBu, -1 dBFS)

Maximum Input Level
+16 dBu

Sensitivity
-20 dBu

Gain Range
36 dB
Phono Inputs

(2) unbalanced RCA

Dynamic Range
92 dB (A-weighted, 135 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)

SNR
79 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)

THD+N
0.002% (1 kHz, +3 dBu, -1 dBFS)

Maximum Input Level
+16 dBu

Sensitivity
-20 dBu

Gain Range
36 dB
Line Outputs 1–6

(6) impedance-balanced 1/4” (6.35 mm) TRS

Frequency Response
20 Hz – 20 kHz (+0.03 / -0.18 dB)

Dynamic Range
113.8 dB (A-weighted)

THD+N
0.003% (1 kHz, -1 dBFS)

Maximum Output Level
+12 dBu

Output Impedance
100 Ω
Headphone Output

(1) 1/4” (6.35 mm) stereo headphone

Dynamic Range
111.2 dB (A-weighted)

THD+N
0.006% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)

Frequency Response
20 Hz – 20 kHz (+0.03 / -0.19 dB)

Maximum Power Delivered
+50 mW (<1% THD, 32 Ω headphones)

Maximum Output Level
+11 dBu

Output Impedance
32 Ω
Pads

(16) velocity- and pressure-sensitive pas with 3D-sensing technology

(8) banks accessible via Pad Bank buttons
Knobs

(4) 360° touch-sensitive Q-Link Knobs

(4) Q-Link Knob columns accessible via Q-Link button

(1) 360° encoder for display navigation and selection via push

(1) 270° volume control
Buttons

(60) dedicated function buttons; red-, amber-, or green-backlit
Display

6.9” / 176 mm (diagonal)

5.9” x 3.7” / 150 x 93 mm (width x height)

Full-color LED-backlit display with touch interface
CPU

Processor:
Quad-core ARM® processor

RAM:
8 GB

Storage:
128 GB, expandable via SATA connections
Connections

(2) 1/4” (6.35 mm) Combo XLR/TRS inputs (1 stereo pair)

(6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)

(1) 1/4” (6.35 mm) stereo headphone output

(2) RCA inputs (1 stereo pair)

(2) 5-pin MIDI inputs

(2) 5-pin MIDI outputs

(4) Stereo 1/8” (3.5 mm) CV/Gate outputs

(2) USB Type-A ports

(1) USB Type-C® port

(1) SD card slot

(1) power adapter input

(1) drive bay for 2.5” (635 mm) SATA drive
Power

via power adapter:
19 V, 3.42 A, center-positive, Included

via battery:
lithium-ion, rechargeable, up to 3 hours of battery life with typical use
Dimensions

17.2” x 10.1” x 2.6”

435.9 x 256.0 x 67.1 mm
Weight

8.6 lbs.

3.9 kg
